Furuno

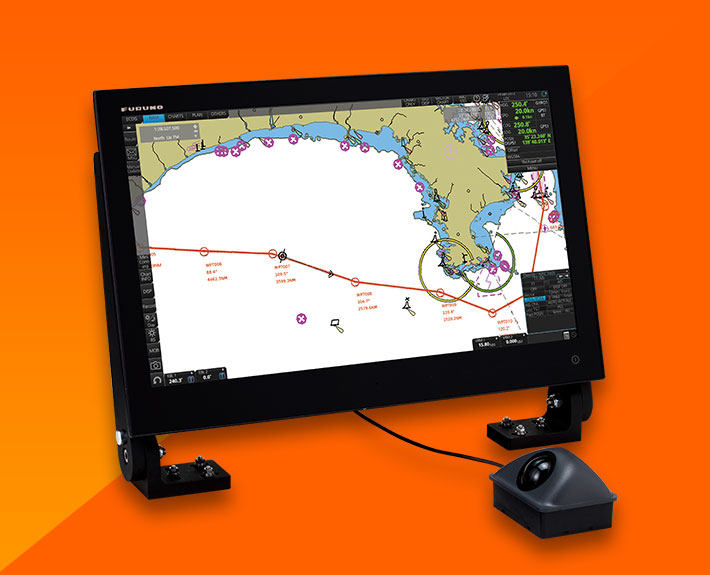

FMD3100

ECDIS

The Furuno FMD3100 is a solution to support smooth transition from paper-based navigation to electronic navigation.

More information about this product?

Feel free to call us on +31 (0)180 – 62 24 42 or send us an e-mail.

Key Features

Streamlined integration into the onboard navigation system; perfectly suited for ECDIS retrofitting projects
Suitable for both primary and back-up ECDIS
Dual configuration of the FMD-3100 supports the vessel to go paperless
For those who have already installed the FMD-3200/FMD-3300 onboard the vessel, the FMD-3100 can be used as a cost-effective back-up arrangement for the FMD-3200/FMD-3300 ECDIS.
Instantaneous chart redraw delivered by FURUNO’s advanced chart drawing engine, making redraw latency a thing of the past
Easily interfaces with existing FAR-2xx7 series Radar
Exchange via Ethernet
Complies with the following IMO and IEC regulations:
• IMO MSC.232(82)
• IMO A.694(17)
• IEC 61162-1 Ed. 4
• IEC 61162-2 Ed. 1
• IEC 61174 Ed. 3
• IEC 62288

Specifications

A solution to support smooth transition from paper-based navigation to electronic navigation.

Compatible Cartography
• IHO/S-57 Edition 3 vector chart (IHO S-63 data protection scheme)
• Admiralty Vector Chart Service by UKHO
• C-MAP ENC*
• Jeppesen Primar ECDIS Service*
• ARCS raster chart
• C-MAP Professional+**

* Jeppesen e-token is not included in the standard supply.
** C-MAP Professional+ is a private chart, hence not construed as replacement for paper chart.

Interface with Jeppesen Dynamic Licensing Service available

Compatibility with Admiralty Information Overlay (AIO) for further navigation safety

Additional AIO layer includes all Admiralty Temporary and Preliminary Notices to Mariners as well as additional ENC Preliminary Notices to Mariners, i.e., reported navigational hazards that have been incorporated into a paper chart, but have yet to be included in ENCs.
The service is free of charge as part of Admiralty Vector Chart Service (AVCS) by UKHO.

Task-based operation realized by combination of Status bar and InstantAccess bar providing quick access to the needed tasks/functions

The user interface of the FMD-3100 centers on carefully organized operational tools: Status bar and InstantAccess bar. The Status bar contains information about the operating status, and the InstantAccess bar contains all the tasks available. These operational tools deliver straightforward, task-based operation by which the operator can quickly perform navigational tasks without having to go deeper into an intricate menu tree.
