The Furuno FS 2575 C 250 Watt MF/HF Radiotelephone with DSC capability facilitates both general and GMDSS communication. It can operate as a DSC transceiver and as a DSC Watch Receiver on all distress and safety frequencies in MF and HF bands. An optional IB585 NBDP terminal can be connected to the transceiver unit for maritime telex operation and distress message/maritime safety information handling.

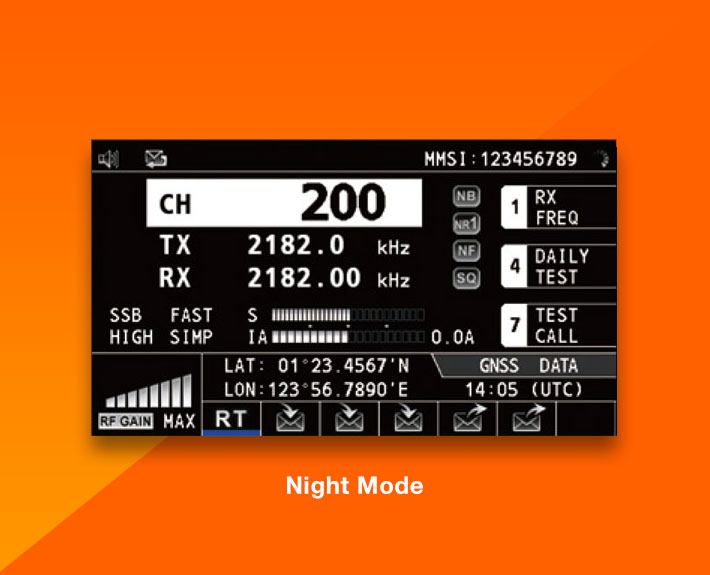

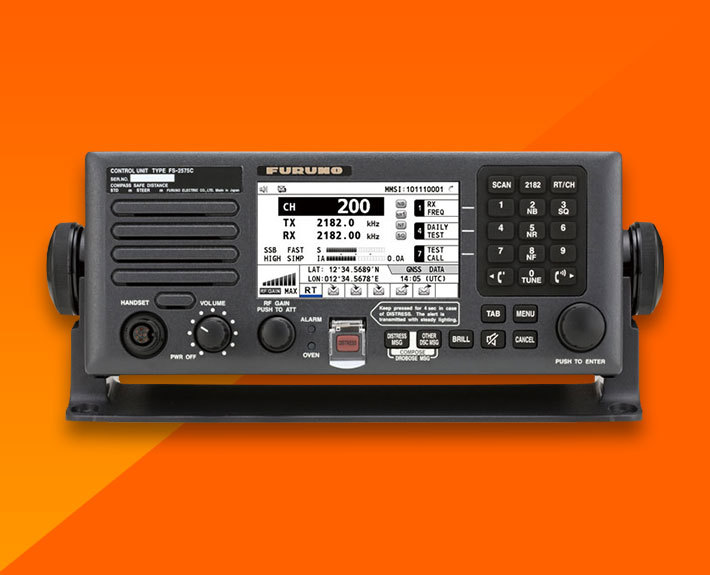

The Furuno FS 2575 C features a bright, high-contrast 4.3″ color LCD (480×272 pixels). Multiple display configurations are available, as well as a Night Mode (white text on black background display) for wheelhouse operation. Instant selection of 256 user-specified channels is provided with a rotary knob or direct keypad input. Quick access to DSC message composition is available by dedicated keys on the control unit.
Three quick-access functions may be assigned which become instantly accessible via keys1, 4 and 7 on the numeric keypad. Functions available for quick-access include: TX frequency setting, RX frequency setting, class of emission setting, AGC setting, output power setting, TX frequency monitoring, display of a list of test messages, display of a list of message files, execution of daily test, listing of log files, and intercom functions.
Simplified Menu Operation:
Numbers are assigned for each of the menu items, and the operator can access each of the menu items either by turning and pressing PUSH TO ENTER knob to select menu items or simply pressing number on the numeric keypad.
The Furuno FS 2575 C fully meets GMDSS carriage requirements for SOLAS ships operating in A3 and A4 sea areas, as well as ITU recommendation on digital selective calling system for use in the Maritime Mobile Service, ITU-R M.493-13.
