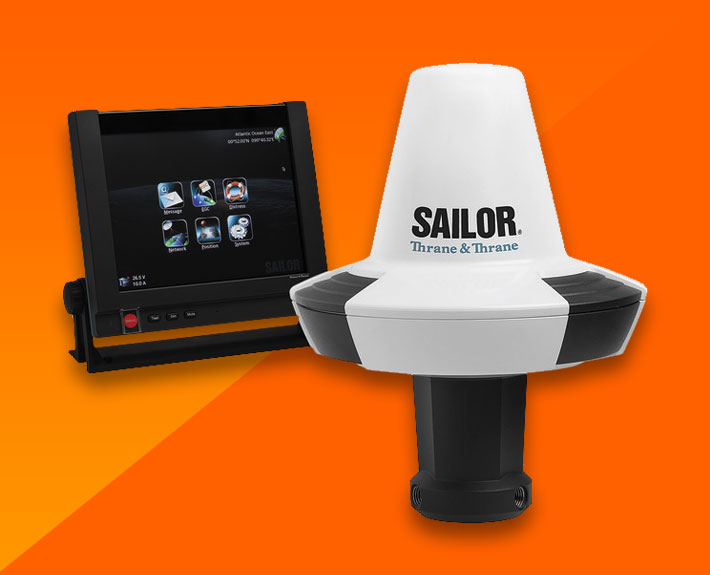

Sailor 6110 Inmarsat Mini C GMDSS
The SAILOR 6110 mini-C is a true next generation GMDSS solution.
More information about this product?
Feel free to call us on +31 (0)180 – 62 24 42 or send us an e-mail.
Key Features
- First ever approved touch screen terminal for GMDSS use
- External storage via SD card or USB disk
- Innovative approach to cabling for simple networking and expansion
- Accurate, reliable 50 channel GPS module that is also Galileo ready
- ThraneLINK
Specifications
Building on the strong foundation of previous SAILOR GMDSS products, it introduces innovative new features and functionality, including touch screen operation through the cutting-edge SAILOR 6006 Message Terminal and an all new approach to installation and networking.
The SAILOR 6110 mini-C is more than just a way to meet mandatory GMDSS requirements, because as part of the innovative SAILOR 6000 Series, it is an integral part of a vessel’s communication system. The mini-C system features true triple functionality as it safely handles all GMDSS, SSAS and LRIT operation on board.
A brand new terminal platform, the SAILOR 3027 mini-C, improves on the already de facto industry standard of the SAILOR 3026 mini-C platform, and has been introduced for the SAILOR 6110 mini-C GMDSS. During the design process, many lessons learned from the SAILOR 3026 mini-C has been incorporated.
As with the previous generation SSAS functionality is available asan option.
A World First operation of the SAILOR 6110 mini-C is performed via the new SAILOR 6006 Message Terminal, which stands out as the world’s first touch screen, Wheelmarked GMDSS terminal. It provides a user-friendly multimedia style interface, making accessing its’ functionality straightforward, which in turn ensures the safe operation of the vessel’s IMO safety and tracking systems.
Cabling Innovations
The unique use of CAN-BUS (NMEA 2000) style cabling for the SAILOR 6110 mini-C is a major innovation. It reduces installation and maintenance time and costs by offering greater flexibility and making it easier to procure cables and tailor length and connectors, to optimise routing. Additionally, sub-systems, such as alarm panels are now connected using RJ45 cables via a switch, making expanding the system easier and less costly.
Accessories
- 406110A-00500 SAILOR 6110 GMDSS Mini C
- 3027 GMDSS Terminal
- 6006 Message Terminal
- 6001 Keyboard
- NMEA2K Mini Device Cable 30 mtr
- 406081A-00500 SAILOR 6081 Power Supply and Charger Inclusive Wall Tray 300W/28V
- 406101A-00500 SAILOR 6101 Alarm Panel mini-C GMDSS
- 8012520006 SAILOR H1252B/TT-3608A Parallel printer, 12/24V, blackgrey
- 406110A-913 SAILOR SSAS add-on kit
- 406194A Terminal Control Unit
- 406110A-916 SAILOR SSAS add-on kit (US version)
- 406100-00520 SAILOR GLONASS add-on kit for SAILOR 61xx mini-C
- 406100-930 Mini/Micro NMEA2K Tee
- 406100-931 Micro NMEA2K Tee
- 406100-932 Inline Micro termination Conn
- 406100-933 Male Mini NMEA2K Field Conn
- 406100-934 Male Micro NMEA2K Field Conn
- 406100-935 Opt. Female Mini NMEA2K field connector
- 406100-940 6m NMEA2K Micro Device Cable
- 406100-943 6m NMEA2K Power Cable
- 406100-944 30m NMEA2K Mini Device Cable
- 406100-945 50m NMEA2K Mini Device Cable
- 406100-946 10m NMEA2K Mini Device Cable
- 406100-947 15m NMEA2K Mini Device Cable
- 403027-103 Adjustable pole/railing mount for TT-3027 Mini-C
- 406081A-00500 SAILOR 6081 Power Supply incl. Charger and Tray for wall mounting 300W/28V DC
- 80119410 SAILOR N163S Power Supply
- 406197A-00500 SAILOR 6197 EDS-205 Moxa Switch 5 Port
- 406101A-00500 SAILOR 6101 Alarm Panel mini-C GMDSS
- 406103A-00500 SAILOR 6103 GMDSS Alarm Panel
