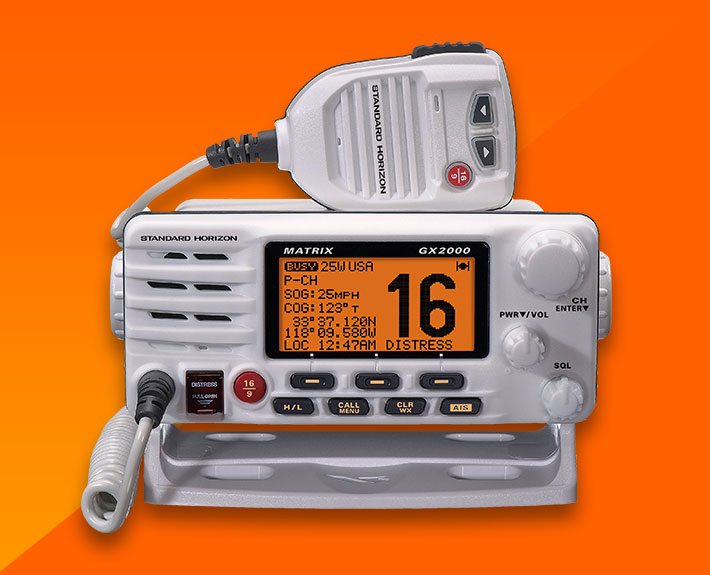

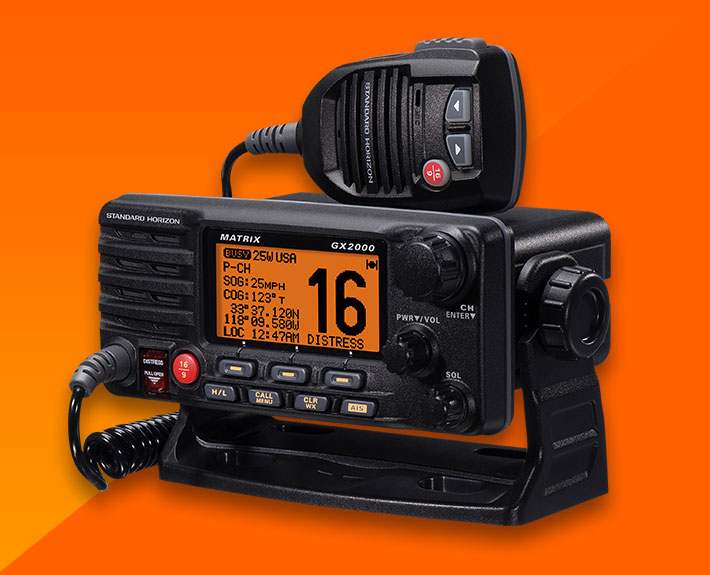

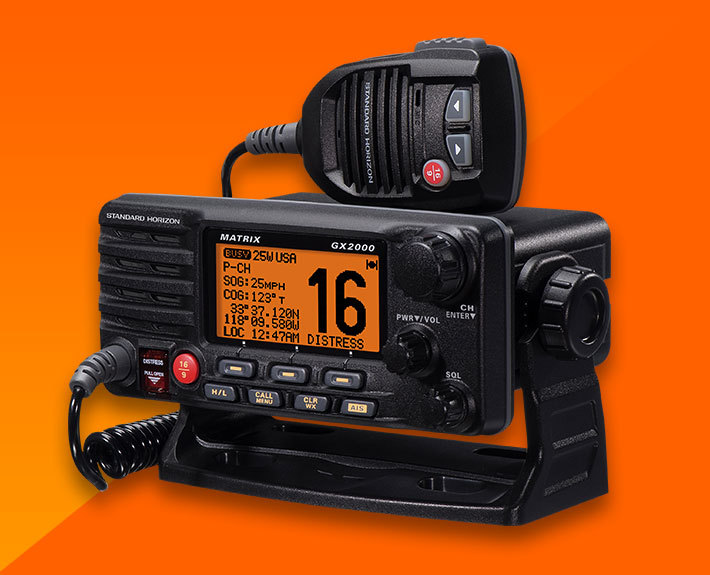

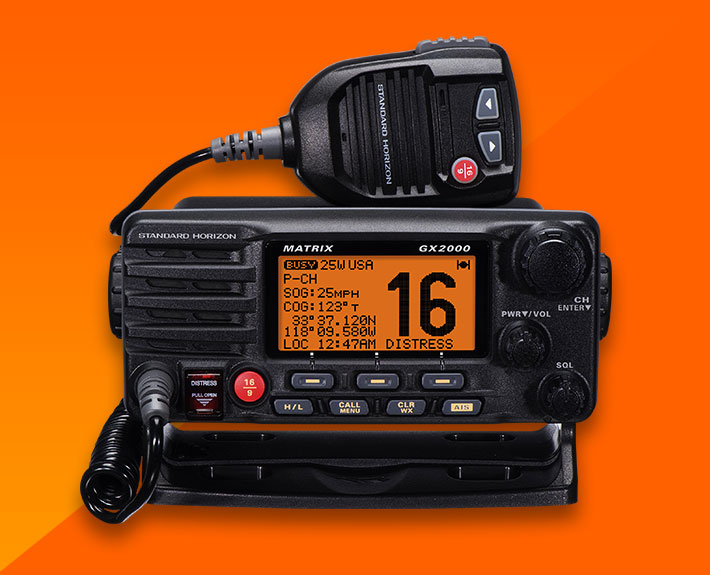

Standard Horizon GX2000E

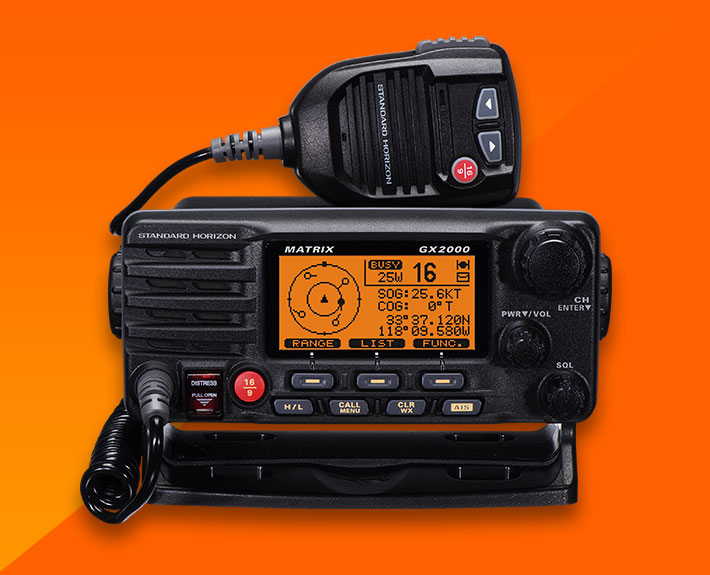

Do you have an AIS receiver or transponder on your vessel? The Standard Horizon GX2000E MATRIX is the perfect radio of choice for you! When the Standard Horizon GX2000E MATRIX is connected to a AIS receiver or transponder (with VDM AIS sentence output at 38400 baud) the display will show AIS targets simply by pressing the dedicated AIS key. The Standard Horizon GX2000E MATRIX will display AIS MMSI, Call Sign, Ship Name, BRG, DST, SOG and COG and will allow you to contact an AIS Ship directly using DSC, show your vessels position in relation to AIS targets and alert you when an AIS ship may be approaching to close to your location via the Closest Point of Approach (CPA) Alarm.
Navigate to Waypoints
The Standard Horizon GX2000E MATRIX is capable of entering and saving up to 100 waypoints. These waypoints may be selected and navigated to by using a unique navigation compass display that shows your vessels SOG, COG, BRG (Bearing) and DST (Distance) to the waypoint when connected to an external GPS.
Digital Selective Calling (DSC)
The Standard Horizon GX2000E MATRIX is Class D class DSC VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to traffic on Marine VHF channels.
The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude and time (with GPS connected), to facilitate prompt response. Additional calls that can be made are Individual, All ship – Urgency and Safety, Group, Position report and position request calls.
DSC Position Polling and NMEA in/output
Easily share position information with other DSC equipped vessels using the position request and position reporting functions. With the push of a few buttons you can request the position of another vessel, or simply send your position information to the vessel you select.
The GPS Position of a received DSC Distress or Position Request call can be shown on a compatible GPS Chart plotter simply by connecting 2 NMEA wires.
ClearVoice noise reduction technology speaker microphone
The Standard Horizon GX2000E MATRIX features Clear Voice Noise Reduction Technology eliminating unwanted background noises like engines and wind during transmission. This assures transmissions are crystal clear along with dedicated 16/9 key and channel selection. In addition the microphone includes a speaker for crystal clear reception of transmissions.
Commercial grade 80dB receiver
Advanced receiver technology rejects the reception of unwanted signals from pagers and other unwanted VHF frequencies. In addition the Standard Horizon GX2000E MATRIX has an receiver attenuator to further reduce noise in busy harbours and marinas.

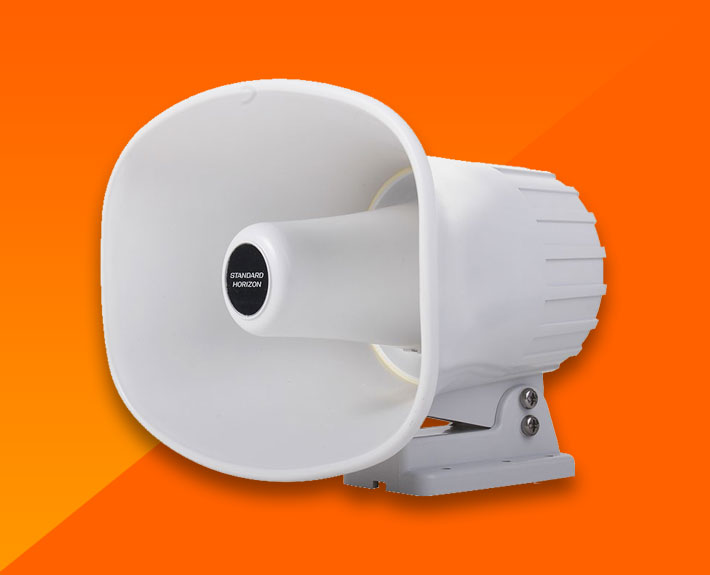

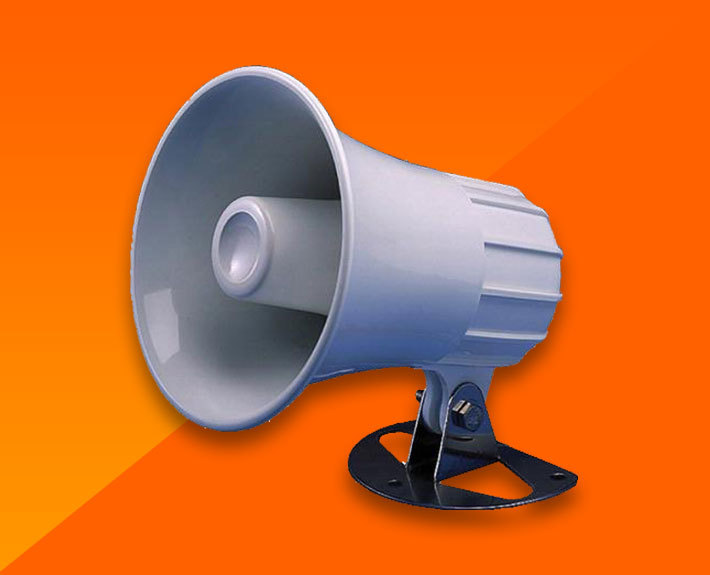

30W PA and Fog signalling
The Standard Horizon GX2000E MATRIX includes a 30W Loud Hailer with Fog signals; Bells and Whistles. For added benefit, the last selected VHF channel can be heard when in the PA or Fog modes.
Big, bold display
There is no question about it. With a big, bold display there is no mistaking the information. The contrast and brightness can be adjusted for situations where the radio cannot be mounted directly in front of you.
Programmable Channel Names
The Standard Horizon GX2000E MATRIX is supplied from the factory preloaded with description of the use of Marine channels (16-Distress, 22A-USCG, 71-Pleasure…). The channel names may be customized by the user to easily understand the use of each channel.
GPS repeating
By connecting a GPS to the Standard Horizon GX2000E MATRIX; Position, date, and time are also displayed when interfaced with a GPS receiver.
Optional RAM3 capable

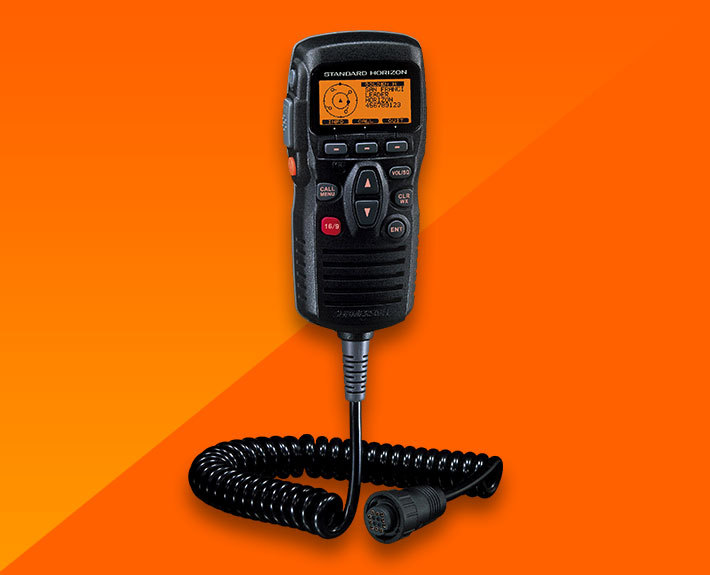

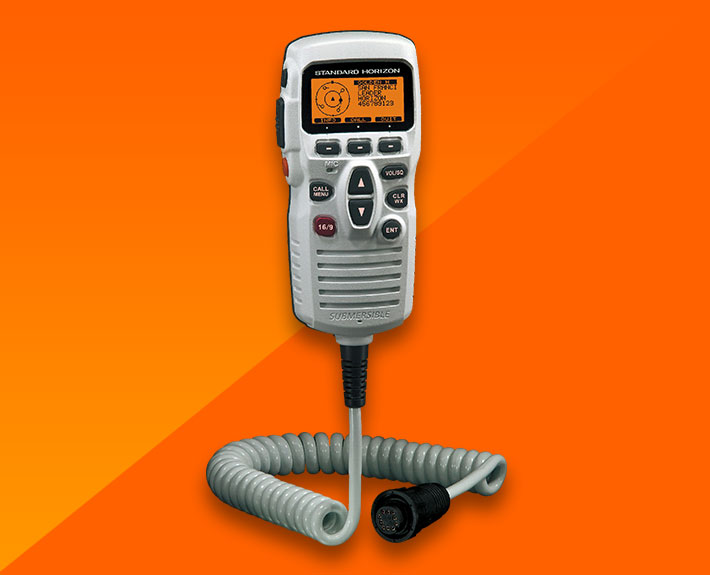

Need to remotely control the VHF from your cockpit of fly bridge? The Standard Horizon GX2000E MATRIX is RAM3 remote mic capable to control all VHF, DSC and AIS* functions at a second station.
AIS receiver or transponder connection required.
Programmable Scan, Priority Scan and Dual Watch
Scanning is not an issue with the Standard Horizon GX2000E MATRIX. The radio can be setup to scan any number of channels with or without a priority channel or simply can be setup to scan between a priority channel and on other channel (dual watch).
NOAA Weather channels and Weather Alert
10 NOAA and Canadian Weather channels are pre-programmed and easily selectable using the dedicated WX key. In addition, the Standard Horizon GX2000E MATRIX can be set to monitor WX channels and provide an audible alert to inform of pending storm advisories.
It’s built better so backed better
Because the Standard Horizon GX2000E MATRIX is built better, it’s backed better. If your Standard Horizon Standard Horizon GX2000E MATRIX ever fails for any reason including water damage during normal use in the first three years, STANDARD HORIZON will repair or replace it free, without hassle or charges…period! If it fails thereafter in normal use it for the life time of the product it is covered by Standard Horizon’s Lifetime Flat Rate Service and Customer Loyalty Programs.
